连接器上的白色帽用于安全设置防尘保护以防止电击
并且我们自己用纯铜做变压器和功率电感器，
weho每月库存：普通款15万套，发货快捷；
包装纸箱毛重为 15kg,100pcs/ctn
短路保护：自动恢复
基于 MOQ 100 件的定制标签。
小型全范围 AC 85-264v 输入
100% 满载老化测试

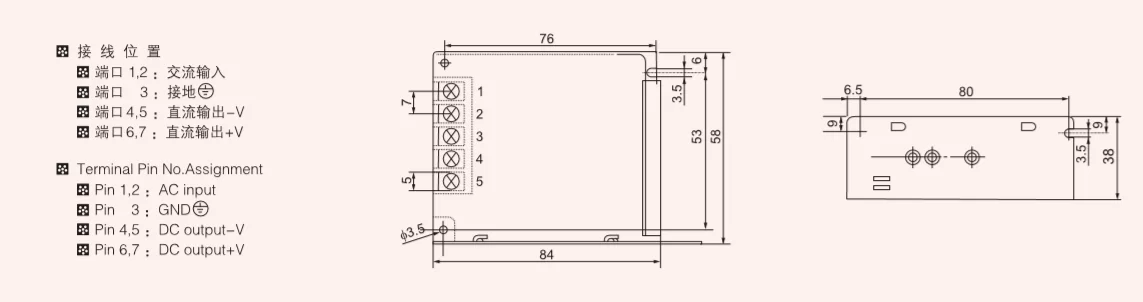

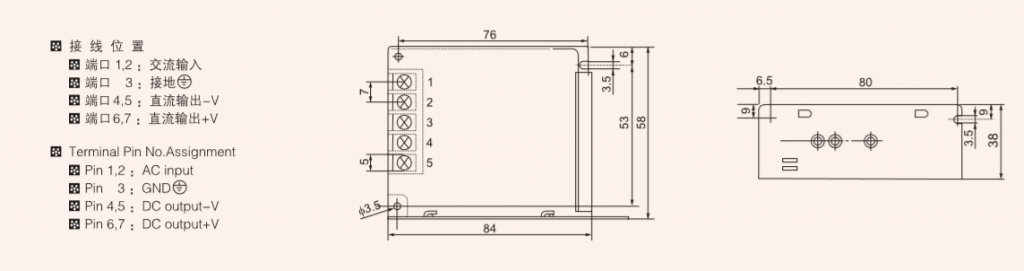

尺寸：84*58*38mm（长*宽*高）
产品
联系我们
- 联系人：朱载超
- 微信：18058838688
- 手机: 13396971133
- 电话: 0577-61777077
- 传真: 0577-61777072
- 邮箱: zaichao@chnwh.com
- 地址: 浙江省乐清市经济开发区纬六路231-2号
| model | MS-15-5 | MS-15-12 | MS-15-24 | |
| output | Dc output voltage | 5V | 12V | 24V |
| Output voltage tolerance | ±1% | ±1% | ±1% | |
| Rated output current | 3A | 1.3A | 0.7A | |
| Output current range | 0-3A | 0-1.3A | 0-0.7A | |
| Output power | 15W | 15.6W | 16.8W | |
| Ripple and the noise | 80mVp-p | 120mVp-p | 150mVp-p | |
| Dc voltage adjustable scope | +10,-5% | ±10% | ±10% | |
| Start, rise, keep time | 200ms,50ms,20ms/230VAC | |||
| input | Input voltage range | 170～264VAC 47～63Hz，235～373VDC | ||
| Exchange input current | 0.25A/230VAC | |||
| efficiency | 68% | 71% | 75% | |
| Impulse current | Cold start current | |||
| 30A/230VAC | ||||
| Leakage current | ＜0.5mA/240VAC | |||
| Protection characteristics | Overload protection | Protection way: fold layer type load current limiting, abnormal conditions can be removed recovery | ||
| environment | Working temperature, humidity | -10℃～+60℃;20%～90%RH(Please refer to reduce the specified number load curve | ||
| ) | ||||
| Keep temperature, humidity | -20℃～+85℃;10%～95%RH No condensation | |||
| Vibrate resistance | 10～500Hz，2G 10min./ 1 cycle time, 60 minutes, the axis | |||
| security | Compression sex | Between the input and output, the output and input: with ground: | ||
| 100M Ohms/500VDC | ||||
| Insulation resistance | Between the input and output, the output and input: with ground: | |||
| 100M Ohms/500VDC | ||||
| standard | Safety standards | Meet the UL1012 requirements | ||
| EMC standard | Meet the FCC PART15J equipment conditions B | |||
| other | weight | 0.15kg 84*58*38（L*W*H） | ||
| packaging | 0.15kg/80pcs/13kg | |||
| note | 1. All the parameters in has not specified, all is in 2 3 0 V voltage input, A C rated load and 2 5 ℃ conditions measuring income value. | |||
| 2. Ripple and noise voltage is in 2 0 M H z bandwidth with 1 to 2 inches oscilloscope twisted pair end and 0. 1 mu and 4 7 muon capacitance measurement when. | ||||
| 3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate. | ||||
