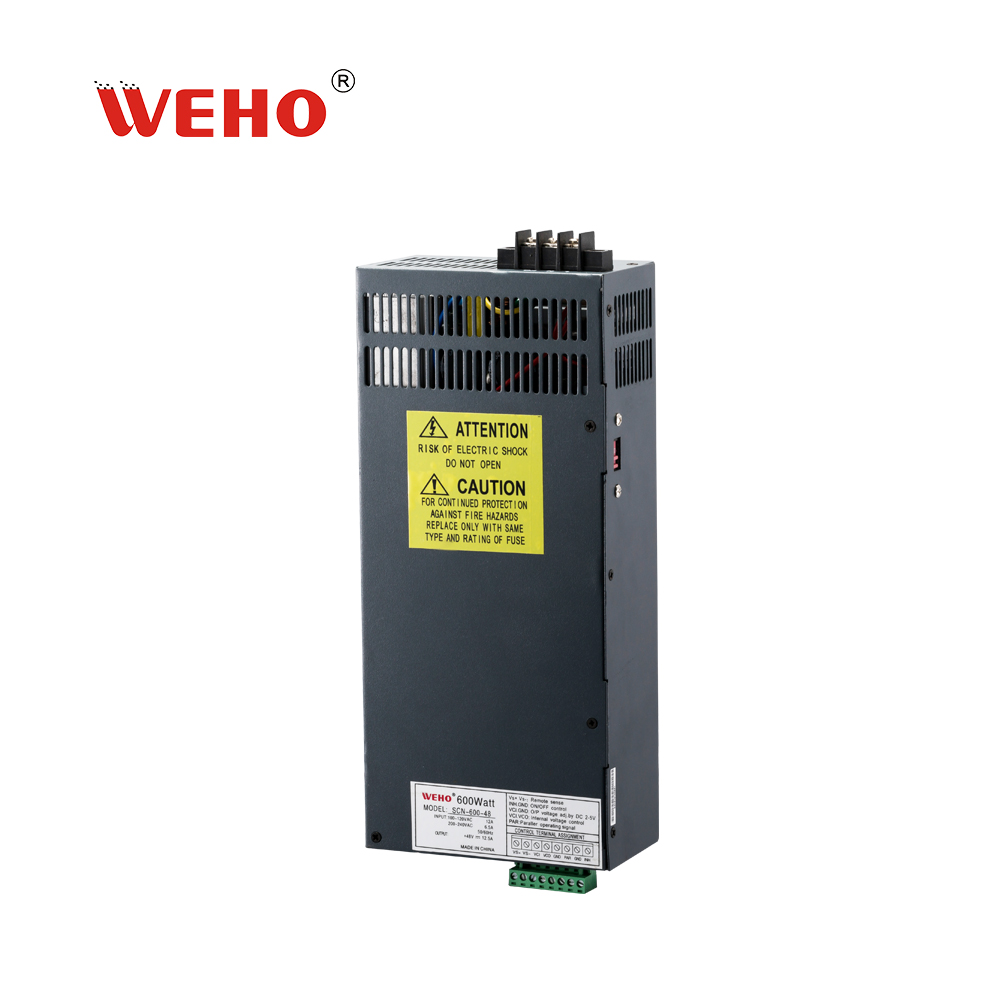

伟豪专业600W开关SCN系列电源可广泛应用于工业自动化和数控步进/伺服系统。

115/230V 交流范围开关可选，内置风扇风冷。

滤波电容；高耐压；低耗散；大容量，广泛应用于工业自动化、LED显示屏、电子设备、通讯等

给我们发邮件报价

我们是 10 年电源制造商，从 10w 到 3000w。

设置上升保持时间：±0.03%°C(0~50°C)

定制标签基于最小起订量 50 件

外形尺寸：247 x 147 x 63.5mm

运费到付，运费预付

我们接受样品订单。

知识产权代码：IP20

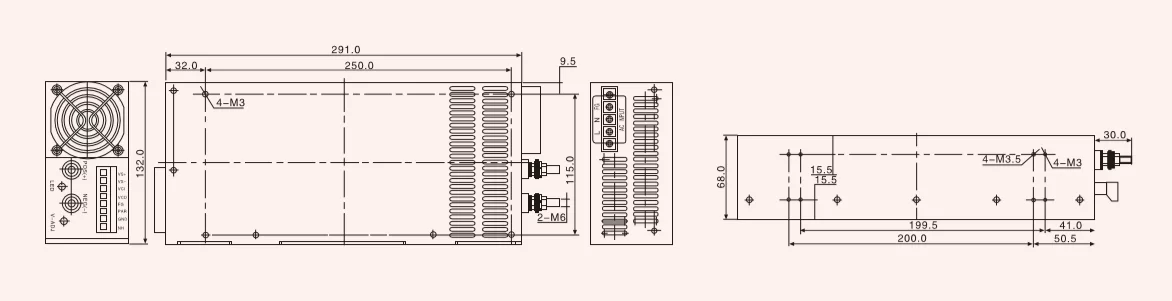

尺寸：291*132*68mm（长*宽*高）

Model / Specification	SCN-600-12	SCN-600-13.5	SCN-600-15	SCN-600-24	SCN-600-27	SCN-600-48
DC output voltage	12V	13.5V	15V	24V	27V	48V
Output voltage error	±1%	±1%	±1%	±1%	±1%	±1%
Rated output current	50A	44A	40A	25A	22A	12.5A
Output current rage	0-50A	0-44A	0-40A	0-25A	0-22A	0-12.5A
Wave and noise	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	200mVp-p
Inlet stability	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Load stability(Note5)	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
DC output power	600W	600W	600W	600W	600W	600W
Efficiency	83%	84%	84%	85.50%	86.50%	87%
Adjustable range for DC voltage	10-13.2V	12-15V	13.5-18V	20-26.4V	24-30V	41-56V
AC input voltage range	90~132AC/180~264AC
AC Input current	12A/115V 7.5A/230VAC
AC impulse current	25A/115V 50A/230V
Leakage current	<3.5mA/240VAC
Overload protection	105%~135% Type:PULSING HICCUP SHUTDOWN Reset: auto recovery
Temperature coefficient	………..
Temperature coefficient	………..
Setup rise hold up time	±0.03%°C(0~50°C)
Vibration	10~500Hz, 2G 10min./1cycle,Period for 60min,EACH AXES
Withstand voltage	Input and output interval:1.5KvAC,Input and enclosure:1.5KVAC Output and enclosure:0.5KVAC
Isolation resistance	Input and output interval,Input and enclosure,Output and enclosure:500VDC/100M Ohms
Working temperature and humidity	-10°C~+50°C,20%~90%RH
Store temperature and humidity	-20°C~+85°C,10%~95%%RH
Overall dimension	247 x 147 x 63.5mm
Weight	2.1Kgs
Safety standards	Meet UL 1950 requirement (NOT apply for the mark)
