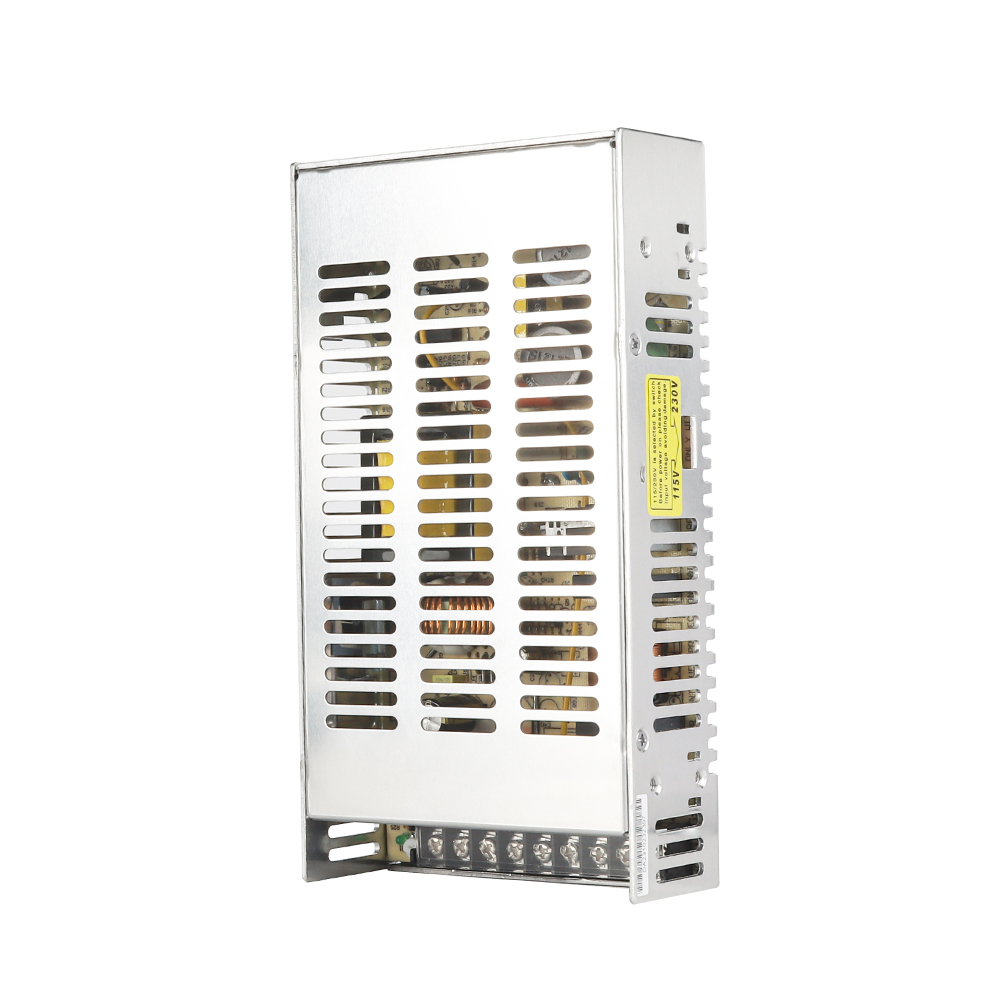

连接器上的白色帽用于安全设置防尘保护以防止电击
厚外壳压铸铝外壳，具有良好的导热性
内置EMI滤波装置，无信号干扰，广泛应用于各个领域
输入电压：90-132/180-264VAC，开关改变
保护：短路/过载/过压
内部排气低声音风扇快速冷却
包装前100%老化测试
100% 满载老化测试

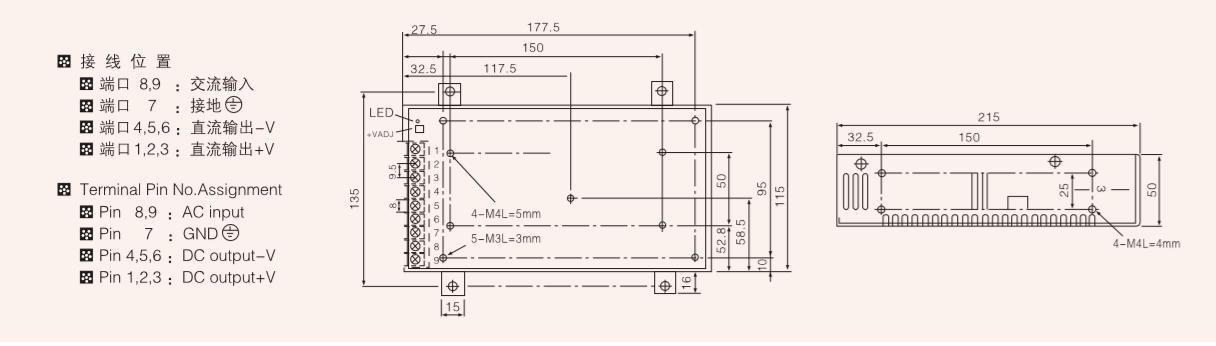

尺寸：215*115*50mm（长*宽*高）
产品
联系我们
- 联系人：朱载超
- 微信：18058838688
- 手机: 13396971133
- 电话: 0577-61777077
- 传真: 0577-61777072
- 邮箱: zaichao@chnwh.com
- 地址: 浙江省乐清市经济开发区纬六路231-2号
| Model | S-201-5 | S-201-12 | S-201-15 | S-201-24 | S-201-27 | S-201-48 | |
| output | DC voltage | 5V | 12V | 15V | 24V | 27V | 48V |
| Voltage tolerance | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% | |
| Rated current | 40A | 16.5A | 13.4A | 8.3A | 7.4A | 4.2A | |
| Current range | 0~40A | 0~16.5A | 0~13.4A | 0~8.3A | 0~7.4A | 0~4.2A | |
| Rated power | 200W | 198W | 201W | 199.2W | 199.8W | 201.6W | |
| Ripple&noise | 120mvp-p | 150mvp-p | 150mvp-p | 180mvp-p | 180mvp-p | 200mvp-p | |
| DCvoltage ADJ.range | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | |
| input | Voltage range | 90~132VAC/180~264VAC(selected by switch),255~373VDC | |||||
| frequency | 47~63HZ | ||||||
| AC current | 4.5A/115VAC,2.5A/230VAC | ||||||
| efficiency | 78% | 80% | 80% | 82% | 82% | 83% | |
| Inrush current | Cold start current 25A/115VAC,50A/230VAC | ||||||
| Leakage current | < 3.5mA/240VAC | ||||||
| overload | Rated output power105%~135% start over load protection | ||||||
| protection | Over voltage | protection type :rated current limit ,auto-recovery after fault condition is removed | |||||
| 6.8~8.2V | 15.6~17.8V | 18.6~20.8V | 30.6~33.2V | 33.2~35.6V | 54.8~56.6V | ||
| Protection type:hiccup mode,auto-recovery after fault condition is removed | |||||||
| Over temperature | inner temperature≥85°C start over temperature protection | ||||||
| Protection mode:cutoff output,auto-recovery after temperature become normal | |||||||
| environment | Working temp,humidity | -10°C~+60°C,20%~90%RH | |||||
| Storagetemp,humidity | -20°C~+85°C,10%~95%RH non-condensing | ||||||
| Withstand vibration | 10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes | ||||||
| safety | Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||||
| Isolated resistance | I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC | ||||||
| Fitstandard | Safety standard | Fit UL1012 | |||||
| EMC standard | FitEN55022,CLASSA | ||||||
| others | Dimension | 215*115*50mm (L*W*H) | |||||
| Weight/packing | 0.87kg/24pcs/22kg/0.049 m³/1.72CUFT | ||||||
