长寿命长可靠性和高效率
高达 60 ℃ 的高工作温度
自然空气对流冷却
dc dc型，安装方便
CE 和 Rohs 认证
输出纹波噪声：100MV
100% 老化测试
产品
联系我们
- 联系人：朱载超
- 微信：18058838688
- 手机: 13396971133
- 电话: 0577-61777077
- 传真: 0577-61777072
- 邮箱: zaichao@chnwh.com
- 地址: 浙江省乐清市经济开发区纬六路231-2号
| MODEL | SD-50-05 | SD-50-12 | SD-50-24 | |||||||
| OUTPUT | DC VOLTAGE | 5V | 12V | 24V | ||||||
| RATED CURRENT | 10A | 4.2A | 2.1 | |||||||
| CURRENT RANGE | 0~10A | 0~4.2A | 0~2.1A | |||||||
| RATED POWER | 50W | 50W | 50W | |||||||
| RIPPLE&NOISE(max)Note.2 | 100mVp-p | 120mVp-p | 150mVp-p | |||||||
| VOLTAGE ADJ.RANGE | 4.5-5.5VDC | 10.5~13.2VDC | 21.6~25.4VDC | |||||||
| VOLTAGE TOLERANGE Note.3 | ±2.0% | ±1.0% | ±1.0% | |||||||
| LINE REGULATION | ±0.5% | ±0.3% | ±0.2% | |||||||
| LOAD REGULATION | ±0.5% | ±0.3% | ±0.2% | |||||||
| SETUP,RISE,HOLD UP TIME | 2.5s, 50ms ,…..12VDC/24VDC/48VDC at full load | |||||||||
| INPUT | VOLTAGE RANGE | A: 9.2~18VDC B: 19~36VDC C:36~72VDC | ||||||||
| EFFICIENCY(Typ.) | 70% | 73% | 76% | 72% | 75% | 78% | 74% | 80% | 83% | |
| DC CURRENT(Typ.) | 7A/12VDC 3A/24VDC 1.5A/48VDC | |||||||||
| PROTECTION | OVER LOAD | 105~160% rated output power | ||||||||
| Protection type :Hiccup mode ,recovers automatically after fault condition is removed | ||||||||||
| OVER VOLTAGE | 5.75~6.75V | 13.8~16.2V | 27.6~32.4V | |||||||
| Protection type : shut down o/p voltage,re-power on to recover | ||||||||||
| ENVIRONMENT | WORKING TEMP. | ~10~+60°C(Refer to output load derating curve) | ||||||||
| WORKING HUMIDITY | 20~90%RH non-condensing | |||||||||
| STORAGE TEMP,HUMIDITY | ~20~+85°C ,10~95%RH | |||||||||
| TEMP.COEFFICIENT | ±0.03%/°C(0~50°C) | |||||||||
| VIBRATION | 10~500HZ , 2G 10min./1cycle,60min.each along X,Y,Z axes | |||||||||
| SAFETY&EMC(Note4) | WITHSTAND VOLTAGE | I/P~O/P: 2KVAC I/P-FG:1KVAC O/P-FG:0.5KVAC | ||||||||
| ISOLATION RESISTANCE | I/P~O/P,I/P~FG,O/P~FG:100M Ohms/500VDC/25°C/70% RH | |||||||||
| EMI CONDUCTION&RADIATION | Compliance to EN55022(CISPR22) CLASS B | |||||||||
| EMS IMMUNITY | Compliance to EN61000-4-2,3,4,6,8:ENV50204,EN55024,light industry level ,criteria A | |||||||||

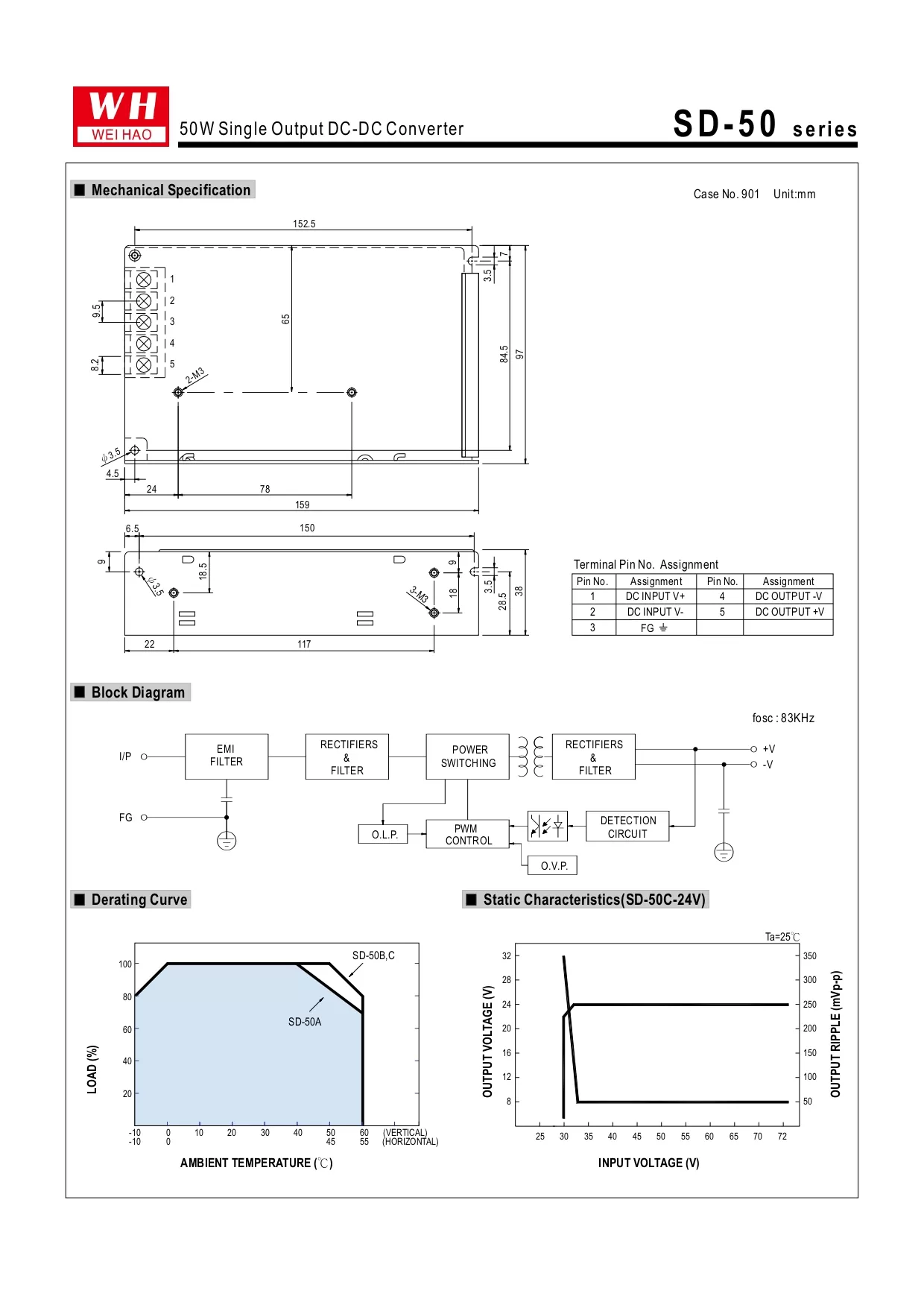

| OTHERS | DIMENSION | 159*97*38mm(L*W*H) | ||||||||
| PACKING | 0.48kg,24 PCS/12.7kg | |||||||||
